Grooved

Timberix™ wooden grooved panels reduce echoes by trapping and diffracting sound in the grooves and perforation found on the surface. The sound that passes through the perforation is further absorbed by an acoustic substrate, which reduces reverberation in the room. Smaller grooves are better at attenuating high frequency sounds, whereas larger grooves are better at controlling low frequency sounds.

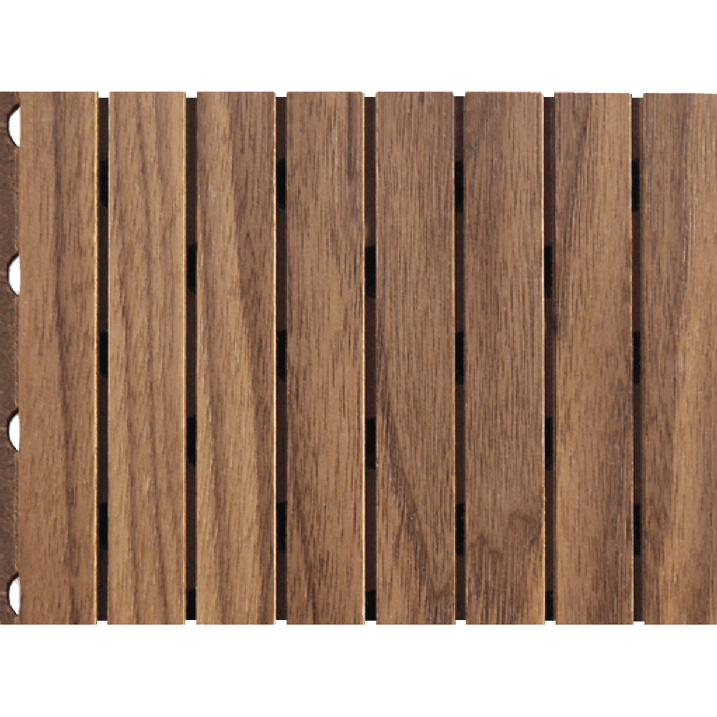

Grooved 13/3

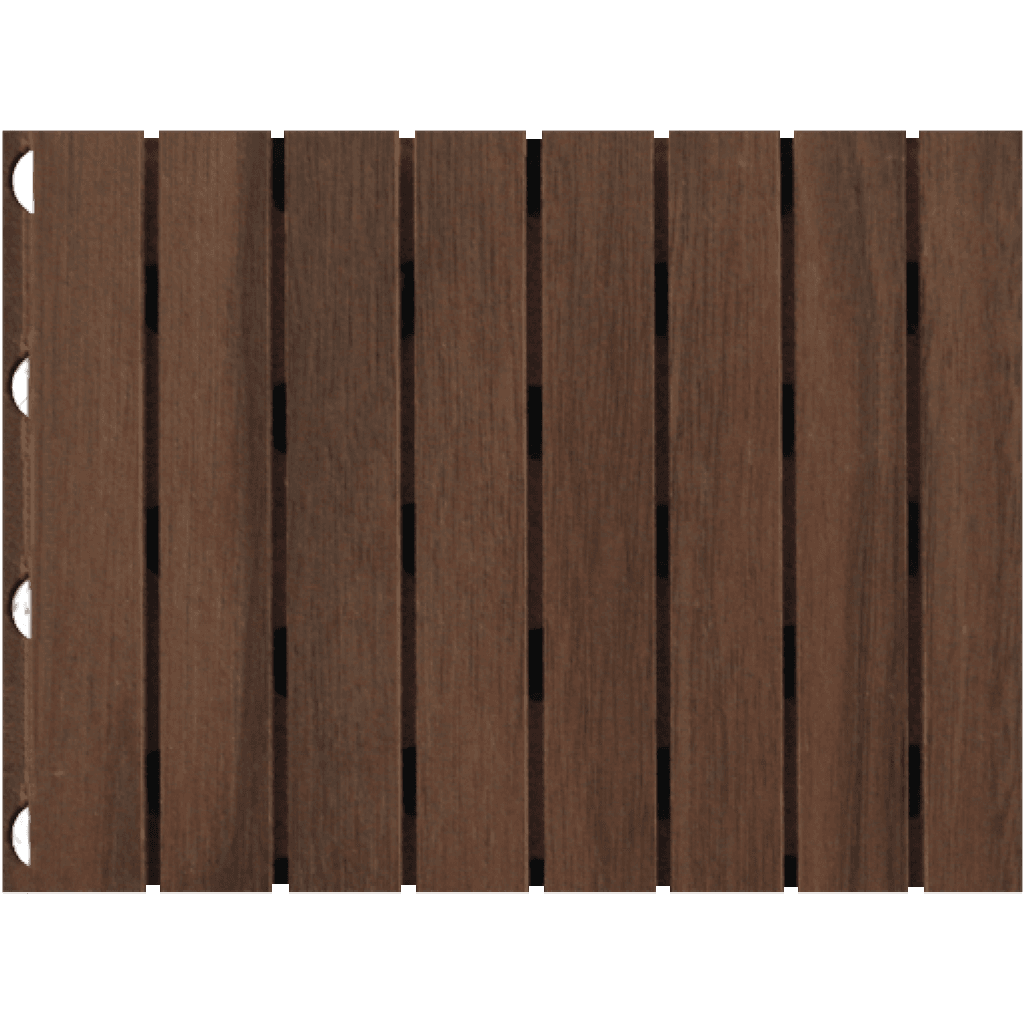

Grooved 14/2

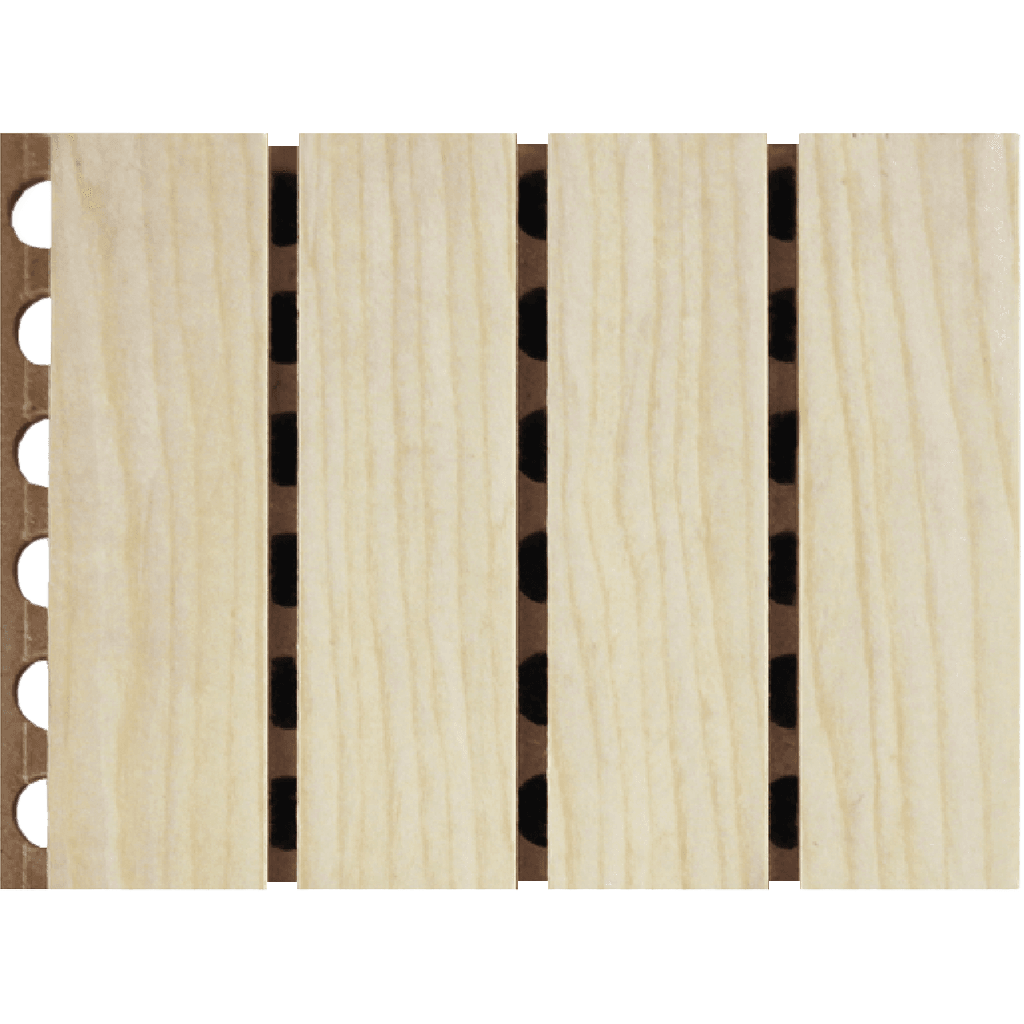

Grooved 28/4

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. Timberix™ wooden grooved panels come in 4 different patterns: 13-3, 14-2, 28-4, 5-3. The first number refers to the slat size (mm) and second number refers to the groove size (mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Specifications

  1. Structure: Base Material, Finishing & Fleece
  2. Material: E1 MDF, FR MDF, MgO Composite Board, etc.
  3. Finishing: Paint, Melamine, PP, Veneer, etc.
  4. Standard Dimension: 2440*192mm, 2440*128mm
  5. Standard Thickness: 15mm
  6. Standard Pattern: 13-3,14-2, 28-4, 5-3
  7. Eco-Friendly Test: EN 13986 : E1
  8. Fire-Rated Test: EN 133501-1 : Class B s1, d0

Preparation

  1. Place of installation must be dry, with temperature no less than 10 degrees Celsius.
  2. Humidity level should be kept between 40% to 60%.
  3. Timberix™ panels must be placed on site for at least 48 hours in order to adapt to the environmental conditions.
  4. Distance between each wooden batten should be less than 500mm, and that between each steel keel should be no more than 600mm.

Installation

  1. Mark out placement of Timberix™ panels, and take into account M&E positions.
  2. Cut panels to size according to final positions.
  3. Decide on type of installation system to use.
  4. Install acoustic substrate of choice.
  5. Join Timberix™ wooden grooved panels from top-to-bottom, and left-to-right.
  6. For wood laminate and veneer finishes, ensure that wooden grooved panels are installed with matching
    grain directions.
  7. Clean surface of the Timberix™ panels with compressed air and gently wipe with dry cloth.

Section Detail

1. Installation accessories

2. Fix H-rail A01 onto wooden battens

3. Pad with sound absorbing substrate

4. Fix rotary clips A02 and A03

Slot panels into rotary clips

Install the next panel onto the previous panel
